Fink Truss Advantages for Lightweight and Efficient Roof Structures

Fink truss advantages are closely related to the way this roof framing system uses triangular geometry to support load, reduce unnecessary steel weight, and simplify construction. In many steel buildings, the roof must cover a practical span, support roof panels and purlins, resist wind uplift, and remain easy to fabricate, transport, and install. A Fink truss can meet these needs when its span, slope, member layout, bracing, and connections are designed as one complete roof system.

A Fink truss is especially useful for pitched roof structures. Its sloped top chords follow the roof shape, while the internal web members divide the span into smaller triangular force paths. This helps the roof structure transfer loads through tension and compression instead of relying heavily on bending. For warehouses, workshops, agricultural buildings, storage halls, and small to medium industrial buildings, this can create a roof structure that is both lightweight and efficient.

However, the value of a Fink truss does not come from its shape alone. The real benefit comes from proper engineering coordination. The purlins must transfer roof loads correctly. The top chord must be laterally restrained. The bottom chord and web members must be sized for actual forces. Connections must be designed to transfer load safely. Temporary and permanent bracing must also be planned before installation. When these details work together, the system can deliver strong performance without unnecessary complexity.

What Is a Fink Truss?

A Fink truss is a roof truss with sloped top chords, a bottom chord, and internal web members arranged in a V-shaped or W-shaped pattern. This internal web layout is one of the most recognizable features of the system. It divides the roof span into smaller triangles, helping the structure move loads efficiently from the roof surface to the supports.

In a typical steel roof, the roof panels first receive external loads such as dead load, maintenance load, rain, snow where applicable, and wind pressure or suction. These loads are then transferred to the purlins. The purlins transfer the forces to the top chord of the truss. From there, the top chord, bottom chord, and web members distribute the forces through the truss and finally into columns, walls, or main steel frames.

The main idea behind a truss is simple: use connected members to create stable triangles. Triangles are efficient because they help control shape and distribute force. Instead of using one large solid beam to span the roof, a truss uses multiple smaller members working together. In a Fink truss, this system is well suited to pitched roof structures because the top chord follows the slope of the roof.

The top chord often works mainly in compression. The bottom chord often works mainly in tension, depending on support conditions and load combinations. The web members transfer force between the top and bottom chords. Some web members may work in tension, while others work in compression. Because the members are arranged to carry axial forces, the system can often use steel more efficiently than a heavy solid beam.

Why Fink Trusses Are Common in Lightweight Roof Structures

Fink trusses are common in lightweight roof structures because they provide a practical balance between strength, material efficiency, and construction simplicity. Many buildings need roof framing that can support a reasonable span without becoming too heavy. A Fink truss answers this need by using geometry instead of excessive steel mass.

This makes the system suitable for many building types, including:

• Steel warehouses
• Industrial workshops
• Small and medium factory buildings
• Agricultural buildings
• Storage halls
• Commercial roof structures
• Utility buildings
• Lightweight prefabricated steel buildings

In these projects, the roof often needs to be strong but not overly complicated. A lightweight roof structure can reduce the load on columns and foundations. It can also make transportation and installation easier. For prefabricated steel construction, repeated truss geometry can help improve fabrication speed and reduce errors during site assembly.

One of the main Fink truss advantages is that it supports efficient roof framing without requiring a highly complex structural form. The system is easy to understand, easy to repeat, and compatible with many standard steel roof components. This is why it remains a practical option for many roof structures that do not require special curved forms, very long spans, or unusually heavy suspended loads.

Main Fink Truss Advantages

The main Fink truss advantages come from its triangular web pattern, pitched roof compatibility, efficient use of steel, and practical construction process. These benefits are strongest when the truss is not treated as an isolated member, but as part of the complete roof system.

Efficient Load Distribution

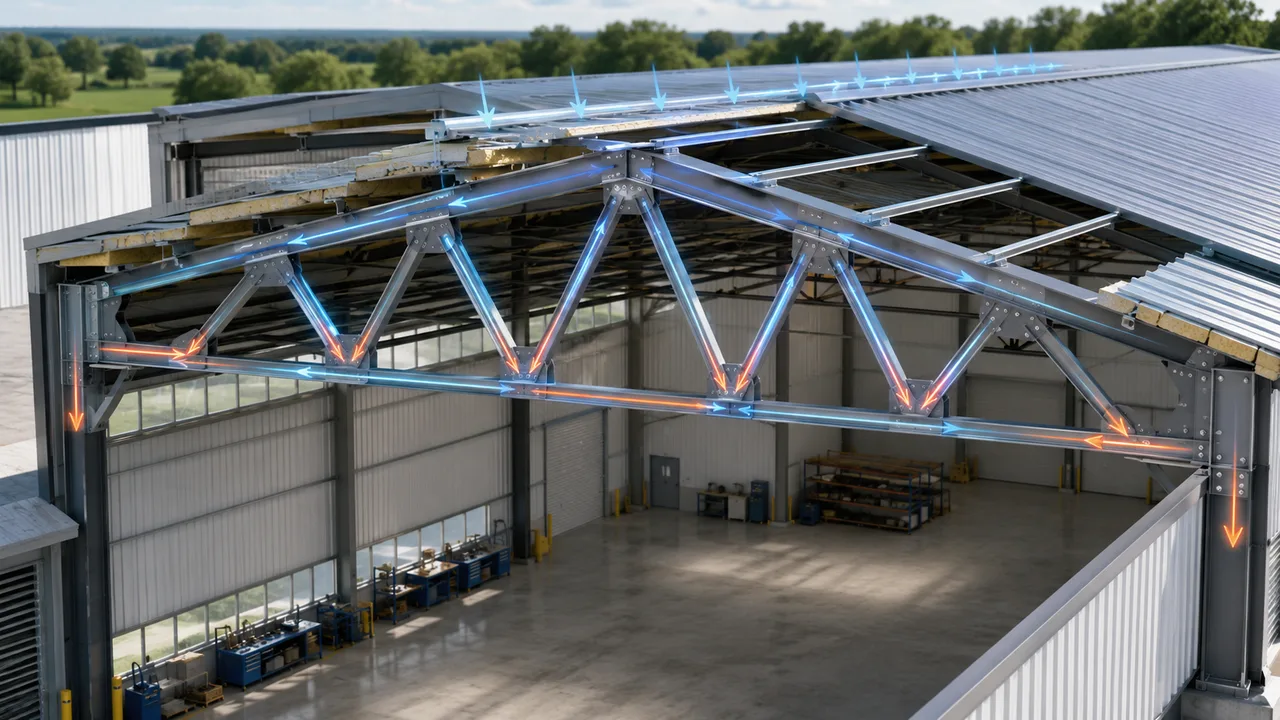

Efficient load distribution is one of the most important benefits of a Fink truss. The internal web members divide the span into smaller triangular sections. This allows roof loads to move through several connected members instead of concentrating too much force in one large beam.

For example, roof loads may include:

• Roof panel weight
• Purlin weight
• Insulation and ceiling material
• Rain load
• Snow load where applicable
• Wind uplift
• Maintenance workers and tools
• Small suspended service loads

When these loads enter the truss, the triangular web system helps distribute them through axial force paths. This means members are designed to work mainly in tension or compression. When forces are clearly distributed, the roof structure can become more efficient and easier to analyze.

This does not mean every Fink truss automatically performs well. The load path must be clear. Purlin locations should match the top chord and panel points as much as possible. Connections must be designed according to the actual force transfer. If the load path is poorly coordinated, the truss may experience unwanted bending, local stress, or connection problems.

Lightweight Steel Usage

Another major advantage is lightweight steel usage. A Fink truss can often reduce the need for large, heavy solid beams because the structure uses multiple members to distribute force. This can help reduce total steel weight when the system is properly optimized.

A lighter roof structure can provide several project benefits. It may reduce handling difficulty during fabrication. It may simplify loading and transportation. It may reduce crane demand during installation. It can also reduce the load transferred to columns and foundations. In steel building projects, these effects can influence the total project cost, not only the roof framing cost.

However, lightweight does not mean weak. A good Fink truss must still be designed for all relevant load combinations. Member size, steel grade, connection details, bracing, and fabrication accuracy all affect performance. A truss that is too light or poorly braced can become unstable. The goal is not simply to reduce weight, but to create a balanced structure that uses steel efficiently without sacrificing safety or durability.

Good Span Capability for Roof Framing

Fink trusses can provide good span capability for many roof framing applications. They are often practical for short to moderate spans, especially where the building uses a pitched roof and repetitive framing layout. This makes them useful for warehouses, workshops, agricultural buildings, and general steel buildings.

The suitable span range depends on several factors:

• Roof slope
• Truss depth
• Roof load conditions
• Wind uplift requirements
• Member sizes
• Connection design
• Purlin spacing
• Bracing layout
• Transportation and lifting limits

As span increases, the truss may need greater depth, larger members, stronger connections, and more careful bracing. Long trusses may also need to be fabricated in sections and assembled on site. This can increase labor, lifting requirements, and inspection work.

For this reason, Fink trusses should not be promoted as a universal solution for every span. They are highly practical when the roof geometry, span, and load conditions match the system. For very long spans or special roof shapes, another truss type may be more suitable.

Suitable for Pitched Roofs

A Fink truss naturally fits pitched roof structures. The sloped top chord follows the roof line, while the internal web members support the load below. This makes the system compatible with many common roof forms used in steel buildings.

Pitched roofs are often selected for drainage, roof panel installation, insulation planning, and architectural appearance. In rainy or snowy regions, roof slope can help direct water or snow away from the roof surface. In industrial and storage buildings, pitched roofs also allow practical installation of metal roof panels and purlins.

Because the Fink truss follows the roof slope, it can support this type of roof geometry without forcing the structure into an unnatural shape. The result is a roof framing system that is clear, repeatable, and easy to coordinate with secondary steel members.

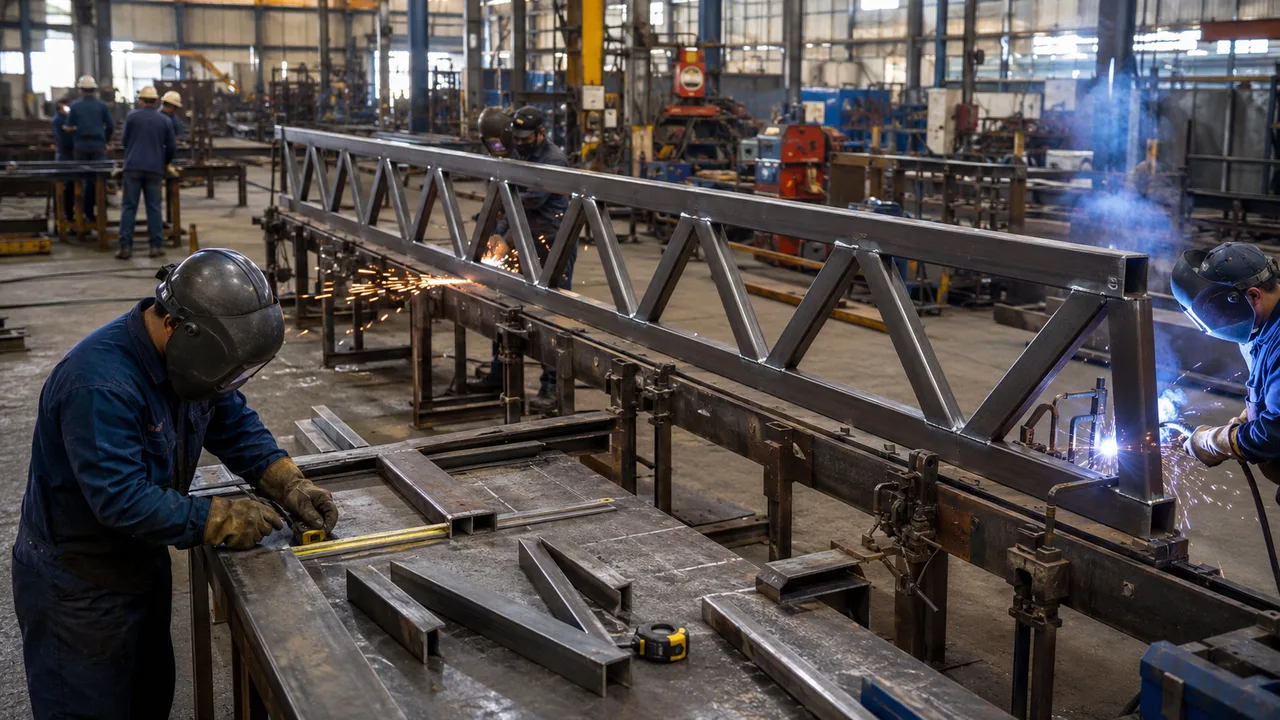

Repetitive and Easy to Fabricate

Fabrication efficiency is another reason why Fink trusses are widely used. The repeated V or W web pattern can simplify shop drawings, cutting, drilling, welding, marking, packing, and inspection. When a project uses many similar trusses, repetition can improve production speed and reduce the chance of fabrication errors.

For steel structure manufacturers, repeated geometry is useful because it supports standardized production workflows. Members can be cut and drilled with consistent dimensions. Gusset plates can follow repeated patterns. Bolt holes can be prepared accurately. Member labels can be organized according to the erection sequence.

This is especially helpful for prefabricated steel buildings and export projects. When steel components are shipped to another site or another country, clear marking and logical packing become very important. If similar trusses are fabricated and labeled correctly, the site team can identify parts more easily and assemble the roof structure with fewer delays.

Practical Installation on Site

Practical installation is one of the Fink truss advantages that can directly affect construction progress. Compared with heavier custom framing systems, a properly designed Fink truss can be easier to lift, align, brace, and connect. Repeated truss units can also make the erection sequence more predictable.

During installation, the truss must be handled carefully. Long or slender trusses may require multiple lifting points or spreader beams to prevent distortion. Temporary bracing should be installed before the truss is exposed to unstable conditions. Purlins and permanent bracing should be installed in the correct order so the roof system gains stability step by step.

A lightweight truss is easier to install only when the erection plan is clear. If temporary bracing is missing, if lifting points are poorly selected, or if purlins are installed too late, the truss may become unstable during construction. Therefore, installation planning should be part of the design process rather than an afterthought.

Fink Truss Advantages Compared with Other Roof Truss Types

Fink trusses are not the only option for roof framing, but they are often one of the most practical choices for lightweight pitched roof structures. The right truss type depends on span, roof shape, load conditions, interior clearance, fabrication method, transportation limits, and installation sequence. Understanding how a Fink truss compares with other systems helps explain where it performs best.

Fink Truss vs Simple Beam Roof Support

A simple beam can be effective for short spans, but as span increases, the beam may need to become deeper and heavier to control bending and deflection. This can increase steel weight, transportation difficulty, lifting demand, and connection forces.

A Fink truss uses triangular geometry to reduce dependence on one large bending member. Instead of forcing one beam to carry most of the roof load, the truss distributes forces through the top chord, bottom chord, and web members. This can create a lighter and more efficient roof structure when the geometry and load path are properly designed.

This is one of the main Fink truss advantages in steel roof construction. The system can support practical roof spans while keeping the framing clear, repeatable, and easier to coordinate with roof purlins.

Fink Truss vs Pratt or Warren Truss

Pratt and Warren trusses are also efficient structural systems. They are often used in bridges, industrial structures, roof systems, and longer span applications. A Warren truss uses a repeated triangular web pattern, while a Pratt truss usually has diagonals arranged to work efficiently under certain loading conditions.

A Fink truss is especially useful when the building has a pitched roof. Its sloped top chord follows the roof profile naturally, and its internal web arrangement helps support common roof framing layouts. For warehouses, workshops, agricultural buildings, and medium-span roof structures, this can make the Fink truss simpler and more suitable than a truss form designed for a different structural purpose.

The comparison is not about which truss is always better. Pratt, Warren, and Fink trusses all have useful applications. The best choice depends on the required roof shape, span, load, fabrication method, and project cost target.

Fink Truss vs Bowstring Truss

Compared with a Bowstring truss, a Fink truss is usually more suitable for simple pitched roof structures, while bowstring systems are often considered when curved roof profiles or wider open roof forms are required. A bowstring truss can create a smooth roof curve and provide strong architectural expression, but it may require different fabrication details and more careful geometry control.

A Fink truss is often more straightforward for projects where the roof slope is simple, the layout is repetitive, and the building needs practical steel roof framing. Its members are easier to repeat, label, ship, and assemble. For many standard steel buildings, that simplicity can be an important advantage.

Both systems can be effective when used in the right project. The Fink truss is usually chosen for efficient pitched roof framing, while the bowstring truss is often selected when the project needs a curved roof profile or a more open architectural form.

Structural Benefits of Fink Trusses in Steel Buildings

The structural value of a Fink truss comes from how it manages force. The system does not depend only on member size. It depends on geometry, load transfer, bracing, and connection design. When these parts are coordinated, the truss can provide reliable roof support with efficient steel usage.

Better Force Control Through Triangular Geometry

Triangles are stable structural shapes because they resist distortion better than simple rectangular forms. In a Fink truss, the web members divide the roof span into a series of triangles. This helps the roof load move through planned force paths instead of creating uncontrolled bending or uneven stress.

This triangular arrangement is one of the core Fink truss advantages. It allows the roof system to work as a connected frame where each member has a clear role. The top chord, bottom chord, and web members all contribute to load transfer. When the geometry is accurate, the truss can remain strong without becoming unnecessarily heavy.

Reduced Bending Demand

A roof beam often works mainly through bending. As span increases, bending demand can become high, which may require a larger and heavier section. A truss reduces this dependence by converting much of the load into axial forces in connected members.

In a Fink truss, many members work primarily in tension or compression. Axial force is often more efficient for steel members than heavy bending, provided that compression members are properly braced and connections are correctly designed. This is one reason why Fink trusses can be useful in lightweight roof structures.

Reduced bending demand can also support better control of deflection. However, deflection still needs to be checked carefully. A truss that is too shallow or poorly proportioned may still deflect too much under service loads. Good design must balance truss depth, member size, connection detail, and roof slope.

Better Coordination with Purlins and Roof Panels

A Fink truss works best when it is coordinated with the full roof system. Roof panels transfer load to purlins. Purlins transfer load to the top chord. The top chord and web members then distribute the force through the truss. If these elements are not aligned properly, the system may lose efficiency.

Purlin spacing should be reviewed together with truss panel points whenever possible. Good purlin coordination can reduce local bending in the top chord and improve lateral restraint. The purlins may also help stabilize the top chord when they are properly connected and supported by the roof bracing system.

Roof panel type, insulation, fasteners, and drainage details should also be considered. A roof structure is not only a truss. It is a complete system, and each part affects the final performance.

Cost Advantages of Fink Truss Roof Structures

Fink truss roof structures can offer cost advantages because they combine efficient steel use with repeatable fabrication and practical installation. The cost benefit is not only about reducing steel weight. It also comes from simplifying production, shipping, and site work.

Potential cost advantages include:

• Lower steel usage when the structure is properly optimized
• Reduced dependence on oversized solid roof beams
• Faster fabrication through repeated geometry
• Simpler cutting, drilling, welding, and member marking
• Easier packing and transportation for prefabricated steel parts
• More predictable site assembly
• Potential reduction in crane demand when units are lighter
• Better connection standardization across repeated trusses

Actual cost depends on many project conditions. Span, roof slope, wind load, snow load, member size, coating system, labor cost, transportation distance, crane access, and site conditions can all affect the final price. A Fink truss that is poorly detailed may not save money, even if the theoretical steel weight is low.

The best cost result usually comes from early coordination between engineering, fabrication, transport, and installation teams. A design that looks efficient in calculation should also be easy to manufacture, ship, and erect.

Design Factors That Affect Fink Truss Performance

A Fink truss performs well only when important design factors are reviewed together. The truss shape provides a good starting point, but final performance depends on the complete roof system.

Roof Span

Span affects almost every part of the truss. A longer span usually increases member forces, deflection demand, connection forces, and lifting difficulty. It may also require greater truss depth. If the truss is too shallow for the span, member forces may become inefficient and deflection may be harder to control.

A practical span should be selected based on building layout, column spacing, interior clearance, roof slope, load conditions, and transportation limits. For repeated steel buildings, standardizing span and truss geometry can help improve fabrication and installation efficiency.

Roof Slope

Roof slope affects the top chord angle, truss depth, drainage, roof panel layout, and internal force distribution. A suitable slope can help the truss work efficiently while supporting proper roof drainage. A slope that is too low may create a shallow truss with higher member forces. A slope that is too steep may increase overall height and wind exposure.

Roof slope should be confirmed before final engineering. Changing the slope after fabrication drawings are prepared can affect member lengths, connection angles, purlin layout, roof drainage, and steel quantity.

Load Conditions

Every roof load must be considered clearly. Common load conditions include dead load, live load, maintenance load, wind uplift, rain load, snow load where applicable, and suspended service loads. Each load type affects the truss differently.

Wind uplift is especially important for steel roofs. It can reverse forces and control connection details. Suspended service loads can also create problems if they are added after fabrication. Lighting, ducts, cable trays, fire pipes, and ventilation systems should be discussed during design, not after installation begins.

Connection Design

Strong members are not enough if the connections are weak. Gusset plates, bolts, welds, splice plates, and hole patterns must be designed for actual member forces. Poor connection design can reduce the performance of the entire truss.

Connection details should also be practical for fabrication and installation. Bolted connections may be preferred for site assembly, while welded connections may be useful in shop fabrication. The final choice depends on transport size, erection sequence, inspection access, coating system, and local construction practice.

Bracing System

Bracing is essential for stability. The top chord often works in compression and needs lateral restraint. Web members in compression may also need proper support. Roof bracing, purlins, cross bracing, and wall bracing should be coordinated as one system.

Temporary erection bracing is just as important. A truss may be stable in its final condition but unstable during installation. Before roof panels and permanent bracing are complete, the truss must be held safely in position. Ignoring temporary bracing can create serious construction risks.

Where Fink Trusses Are Most Useful

Fink trusses are most useful in buildings that need lightweight, efficient, and repeatable pitched roof framing. They are not limited to one building type, but their advantages are strongest when the project has a clear roof slope, practical span, and repeated layout.

Warehouse Roof Structures

Warehouses often need open internal space, efficient roof support, and repeatable framing. A Fink truss can help create a practical roof structure without placing too many internal obstructions. This is useful for storage racks, forklift movement, loading areas, and logistics flow.

For warehouse projects, the truss must still be coordinated with roof insulation, fire systems, lighting, drainage, and possible future service additions. A lightweight roof is helpful, but long-term flexibility also matters.

Workshop and Factory Roofs

Workshops and factories often include machinery, production lines, ventilation, lighting, cable trays, and sometimes crane-related systems. A Fink truss can support efficient roof framing when these services are coordinated early.

If heavy services will be suspended from the roof, the attachment points and loads should be defined during design. If the building includes overhead cranes, the crane system should usually be designed separately from the roof truss unless the truss is specifically engineered for those forces.

Agricultural Buildings

Agricultural buildings often need practical coverage, ventilation, durability, and efficient construction. Fink trusses can be useful when the building uses a simple pitched roof and repeated framing layout.

Corrosion protection should receive attention in agricultural environments. Moisture, fertilizer, chemicals, and animal waste can create aggressive conditions. The coating or galvanizing system should match the actual environment rather than only the initial budget.

Commercial and Utility Buildings

Commercial and utility buildings can also use Fink trusses for halls, storage spaces, service buildings, and medium-sized steel structures. In these projects, coordination with ceilings, lighting, appearance, and maintenance access may be more important.

If the roof structure is exposed, the appearance of the truss, coating quality, and connection details may also matter. If the truss is hidden above a ceiling, service routes and access space must be planned carefully.

Common Mistakes When Using Fink Trusses

Are Fink Trusses Always the Best Choice?

Fink trusses are useful, but they are not always the best choice for every roof structure. They work especially well for pitched roofs, practical spans, repeated layouts, and lightweight steel framing. When the project conditions match these strengths, the system can be efficient and economical.

Other systems may be better when the roof requires a very long span, a curved profile, heavy suspended equipment, special architectural form, or large uninterrupted service zones inside the truss depth. In these cases, a different truss type or roof framing system may provide better performance.

The right solution should be selected based on engineering requirements, not habit. Span, roof shape, load, fabrication method, transportation, installation, maintenance, and long-term durability should all be reviewed before choosing the truss type.

Conclusion

The main Fink truss advantages include efficient load distribution, lightweight steel usage, good pitched roof compatibility, practical fabrication, easier installation, and balanced cost performance. These advantages make the system useful for many warehouses, workshops, agricultural buildings, commercial structures, and lightweight prefabricated steel buildings.

A Fink truss performs best when it is designed as part of the complete roof system. Purlins, roof panels, bracing, connections, columns, drainage, suspended services, and installation sequence all affect performance. When these details are coordinated from the beginning, a Fink truss can provide a strong, lightweight, and efficient roof structure for many steel building projects.

FAQ About Fink Truss Advantages

What are the main Fink truss advantages?

The main Fink truss advantages include efficient load distribution, lightweight steel usage, pitched roof compatibility, practical fabrication, easier installation, and cost-effective roof framing when the system is properly designed.

Is a Fink truss good for steel roof structures?

Yes. A Fink truss can be a good choice for pitched steel roof structures in warehouses, workshops, agricultural buildings, commercial halls, and many medium-span roof applications.

Why is a Fink truss lightweight?

A Fink truss is lightweight because its triangular web arrangement helps members work mainly in tension and compression. This reduces dependence on heavy solid beams and allows steel to be used more efficiently.

Can a Fink truss support long spans?

A Fink truss can support practical roof spans, especially short to moderate spans. The suitable span depends on roof slope, load conditions, truss depth, member size, bracing, connection design, transportation, and installation method.

What is the difference between a Fink truss and a Bowstring truss?

A Fink truss is commonly used for pitched roofs with triangular web geometry. A bowstring truss is often used for curved roof profiles or wider open roof forms. The better choice depends on roof shape, span, load, fabrication, and project design goals.

What affects the cost of a Fink truss roof?

The cost of a Fink truss roof is affected by steel tonnage, member sizes, connection details, fabrication labor, coating system, transport distance, crane access, bracing requirements, and installation sequence.
