A saw-tooth truss is a distinctive roof framing system often used in industrial buildings that need repeated roof bays, natural daylight, ventilation, and practical steel roof construction. Its profile looks like a row of saw teeth, with repeated sloped roof planes and steeper vertical or near-vertical faces. This shape is not only architectural. It also affects how the roof transfers loads, manages water, admits daylight, and connects with the rest of the steel structure.
In factories, workshops, textile buildings, assembly halls, and large industrial spaces, roof design must do more than cover the building. It must support roof panels, resist wind uplift, control rainwater, allow maintenance access, and coordinate with lighting, ventilation, fire protection, and production layouts. A saw-tooth roof can support these needs when the truss geometry, purlin layout, bracing, drainage, waterproofing, fabrication, and installation sequence are planned as one complete system.
However, this roof type also requires careful detailing. Poor orientation, weak drainage planning, uncoordinated glazing, or insufficient bracing can create problems during construction and long-term operation. For that reason, a saw-tooth truss should be treated as a complete industrial roof system rather than a simple repeated roof shape.
What Is a Saw-Tooth Truss?
A saw-tooth truss is a roof truss system with repeated triangular or asymmetric roof profiles. Each bay usually includes one sloped roof plane and one steeper face. The steeper face can be used for clerestory windows, translucent panels, louvers, or ventilation openings, while the sloped face supports roof panels and directs rainwater toward gutters or drainage lines.
Before choosing this roof type, it is useful to understand how a saw-tooth truss roof system works as both a structural and architectural solution. The truss supports roof loads, but it also helps define daylight direction, roof rhythm, ventilation strategy, and industrial building appearance.
In steel construction, the system may be built from repeated truss frames, purlins, bracing members, roof panels, wall panels, flashing, gutters, and connection plates. Because many bays are repeated, proper standardization can improve fabrication efficiency. At the same time, every repeated bay must still be checked for load transfer, drainage, stability, and installation safety.
How a Saw-Tooth Truss Works
A saw-tooth roof works by dividing a large industrial roof into repeated structural bays. Each bay carries roof loads through sloped members, vertical or steep members, internal web members, purlins, and bracing. These loads are then transferred to columns, main frames, walls, or supporting beams.
The repeated geometry can make the system efficient for large floor areas. Instead of using one simple continuous roof slope, the saw-tooth form creates raised faces that can admit daylight or support ventilation. This is one reason the system has been widely associated with industrial buildings where large indoor spaces benefit from controlled light and air movement.
Roof Load Transfer
Roof loads usually begin at the roof panels. The panels transfer gravity loads, wind forces, and maintenance loads to the purlins. The purlins then transfer those loads into the truss members. The truss distributes the forces through its chords and web members before sending them into the supporting columns or main steel frame.
This load path must be clear. If purlins do not align properly with truss panel points, or if roof loads are introduced at weak locations, local bending and connection stress can increase. For industrial roof construction, the purlin layout and truss geometry should be coordinated before fabrication begins.
Repeated Bay Layout
Saw-tooth roofs are commonly arranged in repeated bays across the width or length of a building. This repeated layout can help create a consistent roof rhythm, simplify fabrication, and make installation more systematic.
However, repetition does not remove the need for engineering review. End bays, corner zones, gutter lines, wall interfaces, expansion joints, and areas near large openings may behave differently from typical middle bays. These zones often need special attention during design.
Daylight and Ventilation Function
One of the biggest reasons to use a saw-tooth roof is the potential for daylight and ventilation. The steep face of each tooth can support windows, translucent panels, louvers, or air outlets. When orientation is planned correctly, the building can receive more controlled natural light while reducing excessive glare or heat gain.
Ventilation openings can also be integrated into the raised faces. This can be useful in factories, workshops, and production areas where heat, dust, or indoor air quality must be managed. Still, ventilation design must be coordinated with weather protection, flashing, and structural framing.
Key Components of a Saw-Tooth Truss Roof
A saw-tooth truss roof includes several components that must work together. The main truss members carry loads, the purlins support roof panels, the bracing stabilizes the system, and the roof envelope manages weather protection.
Top Chord and Sloped Roof Members
The sloped roof members support roof panels, purlins, insulation, and maintenance loads. They also define the direction of roof drainage. Because these members often carry compression, they may need lateral restraint from purlins or bracing.
The roof slope should be steep enough to allow reliable drainage. If the slope is too low, water can move slowly or collect near gutters and joints. If the slope is too steep, the roof height, wind exposure, and material use may increase.
Vertical or Steep Face Members
The vertical or steep face is one of the defining features of a saw-tooth roof. It may support glazing, translucent panels, louvers, cladding, or ventilation openings. This face must be designed for wind pressure, water tightness, and maintenance access.
If glazing is added, the supporting frame must control movement and prevent leakage. Flashing, sealants, and connection details are especially important around the transition between the sloped roof plane and the steep face.
Web Members
Web members help transfer forces between the main chords of the truss. Their arrangement depends on the span, roof pitch, loading conditions, and fabrication method. Properly placed web members can reduce bending and improve structural efficiency.
Poor alignment can create eccentric force transfer, difficult bolting, or welding problems. For repeated industrial trusses, accurate cutting, drilling, and member marking are important to keep installation smooth.
Purlins and Secondary Framing
Purlins transfer loads from the roof panels to the truss and can help restrain compression members. Their spacing should match the roof panel system, expected loads, and stability requirements. Purlins should not be treated only as panel supports. In many steel roof systems, they also contribute to the overall stability of the roof frame.
Secondary framing may also include eave members, gutter supports, opening frames, service supports, and wall framing. These details should be coordinated with the truss before production drawings are finalized.
Bracing System
Bracing is essential for both permanent performance and construction safety. Permanent bracing helps the roof resist lateral movement, wind effects, and member instability. Temporary bracing keeps the truss stable during lifting and erection before the full roof system is complete.
A truss can be strong in the final design condition but unstable during installation if temporary bracing is ignored. This is especially important in exposed sites or projects with long repeated roof bays.
Why Saw-Tooth Truss Is Used in Industrial Roof Construction
The saw-tooth truss is often selected for industrial roof construction because it can combine structure, daylight, ventilation, and repeated building geometry. For factories and workshops, these advantages can support both building performance and worker comfort.
Key benefits include:
- Natural daylight for large production or workshop areas
- Potential ventilation through clerestory openings or louvers
- Efficient roof coverage across repeated industrial bays
- Compatibility with steel purlins and metal roof panels
- Strong visual identity for industrial buildings
- Possible reduction in daytime lighting demand
- Flexible use in factories, workshops, warehouses, and utility buildings
The system is especially useful when daylight is part of the building strategy. In many industrial projects, a standard roof may be simpler, but it does not provide the same opportunity for repeated high-level light openings.

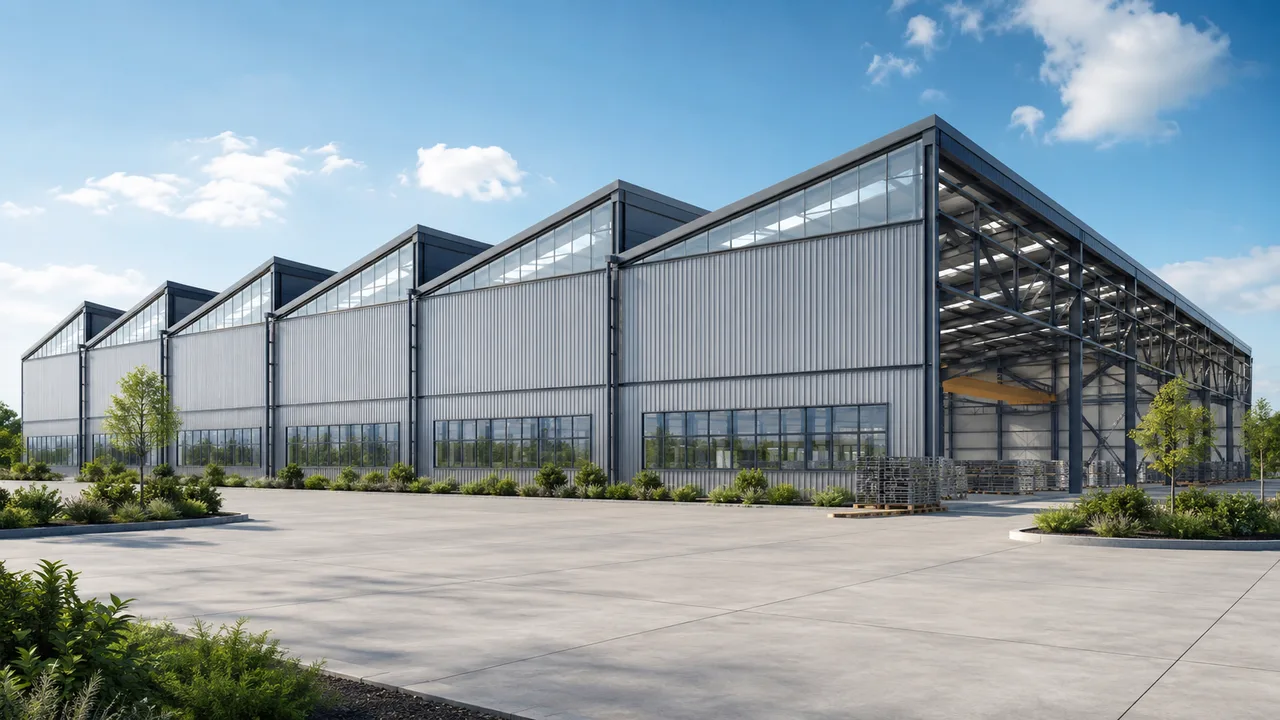

Saw-Tooth Truss for Daylighting
Daylighting is one of the most important advantages of this roof type. The steep face of the saw-tooth profile can be oriented to bring light into the building while reducing direct solar glare where possible. In some climates and orientations, this can create a more comfortable industrial workspace.
The daylighting system may use glass, polycarbonate panels, translucent sheets, or clerestory window units. The right choice depends on climate, maintenance access, budget, insulation requirements, and the working conditions inside the building.
The structure must also support the daylighting materials. Window frames, flashing, seals, drainage edges, and thermal movement should be considered. If daylight panels are added after the structural design is complete, the roof may need additional review.
Load Considerations in Saw-Tooth Truss Design
A saw-tooth roof can have more complex loading conditions than a simple single-slope roof. The repeated steep faces, valleys, openings, and roof transitions can affect wind pressure, rainwater movement, and maintenance loads.
Dead Loads
Dead loads include roof panels, purlins, insulation, glazing, louvers, gutters, flashing, and the self-weight of the truss. Because the roof shape repeats, even small components can become significant over a large roof area.
Live and Maintenance Loads
Maintenance workers, tools, access platforms, roof walkways, and small equipment loads should be included where relevant. Industrial roofs often require inspection and maintenance, especially around gutters, glazing, ventilation openings, and waterproofing details.
Wind Uplift
Wind uplift is important for any steel roof, but saw-tooth geometry can create different pressure zones across sloped and vertical faces. Roof panels, purlins, truss members, bracing, fasteners, and anchor points must work together to resist uplift forces.
The steep face may also experience direct wind pressure depending on building orientation. This makes connection design and roof envelope detailing especially important.
Rain and Drainage Loads
Drainage is a major design issue in saw-tooth roof construction. Repeated valleys, gutters, and roof transitions must be sized and detailed properly. If water cannot drain quickly, local ponding and leakage risks can increase.
The roof slope, gutter capacity, downpipe layout, flashing details, and maintenance access must be planned together. A structurally sound roof can still fail in service if drainage and waterproofing are poorly detailed.
Suspended Loads
Factories and workshops often include suspended lighting, ducts, cable trays, fire protection pipes, fans, and service platforms. These loads should not be attached randomly to the truss after installation. The design should define allowed fixing points and load limits before fabrication.
Drainage and Waterproofing in Saw-Tooth Roof Construction
Drainage and waterproofing are among the most important practical concerns for a saw-tooth roof. Because the roof has repeated transitions between sloped planes and raised faces, there are more joints, gutters, and flashing zones than in many simpler roof forms.
Important drainage and waterproofing details include:
- Clear slope direction for every roof plane
- Proper gutter sizing at repeated valley lines
- Reliable flashing around glazing and vertical faces
- Waterproof joints between roof panels and wall panels
- Safe access for gutter cleaning and inspection
- Allowance for thermal movement in panels and framing
If these details are not coordinated early, leakage can become a long-term maintenance problem. For industrial buildings, roof leaks can affect equipment, inventory, production lines, and worker safety.
Fabrication Factors for Saw-Tooth Truss
A saw-tooth truss system often benefits from repetition, but only when fabrication is well planned. Repeated member lengths, standard connection plates, accurate hole locations, and clear member marks can make production faster and installation easier.
Key fabrication factors include:
- Accurate truss geometry and shop drawings
- Precise cutting and CNC drilling
- Correct gusset plate size and hole alignment
- Controlled welding sequence to reduce distortion
- Surface treatment such as painting or galvanizing
- Proper packing sequence for site erection
- Segment planning for container loading or truck transport
For export or remote-site projects, packing logic is especially important. The installation team should be able to identify members quickly and assemble repeated truss bays without confusion.

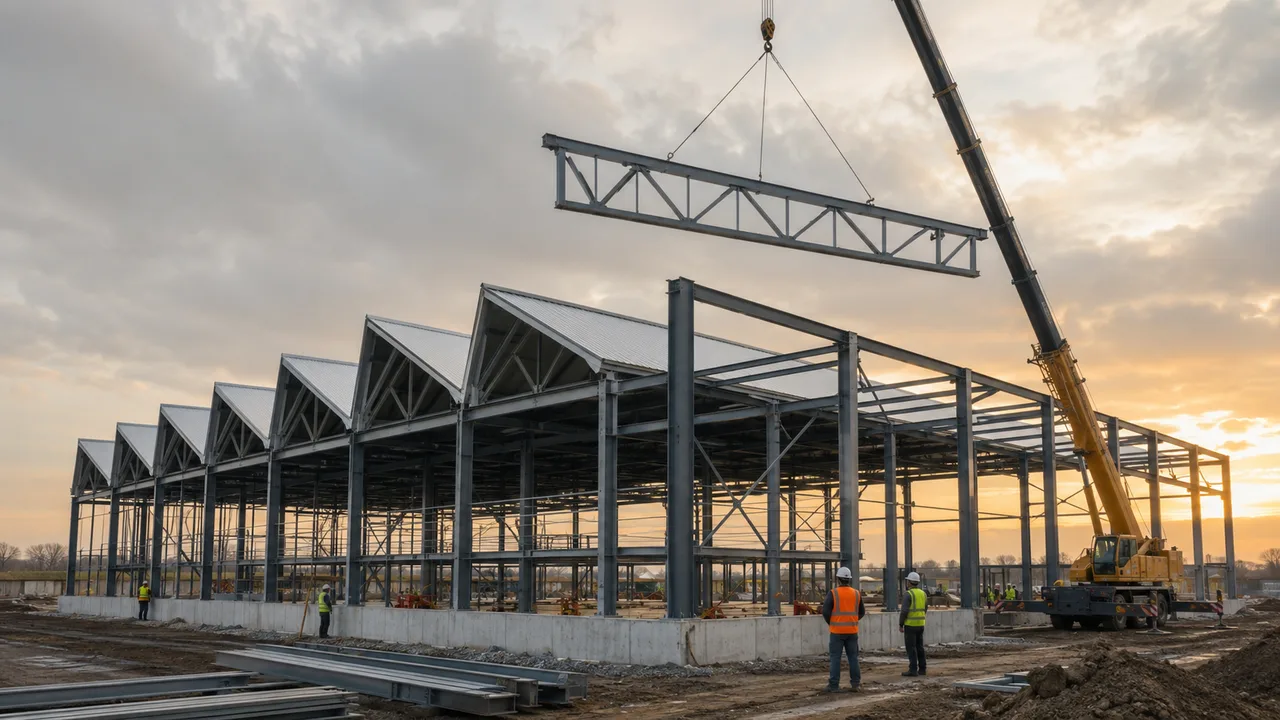

Installation Process in Industrial Projects
Installation planning should begin before the steel members arrive on site. Large roof trusses need crane access, lifting points, temporary supports, alignment checks, and a safe erection sequence. The repeated nature of a saw-tooth roof can speed up installation, but only if the first bays are set out correctly.
A typical installation sequence may include setting the main columns or frames, lifting the first truss bay, installing temporary bracing, adding adjacent trusses, fixing purlins, checking alignment, completing permanent bracing, and then installing roof panels, gutters, flashing, glazing, or louvers.
Final inspection should confirm bolt tightening, weld quality where applicable, member alignment, purlin connection, bracing completion, coating repair, roof panel fastening, and waterproofing details.
Common Applications of Saw-Tooth Truss Roofs
Saw-tooth truss roofs are most common in industrial buildings where large roof areas, daylight, ventilation, and repeated bays are useful.
Manufacturing Plants
Manufacturing plants often need wide roof coverage, open work areas, and better daylight distribution. A saw-tooth roof can support production floors that require consistent light and ventilation.
Textile Factories
Textile factories have historically used saw-tooth roof forms because controlled daylight can support detailed work areas. The raised faces can also allow ventilation when properly designed.
Workshops
Workshops can benefit from repeated roof bays, practical steel framing, and high-level light openings. The system is useful when the interior needs fewer obstructions and a clear working layout.
Warehouses with Daylight Requirements
Standard warehouses may not always need saw-tooth roofs, but this system can be useful when natural light, roof ventilation, or a specific industrial appearance is required.
Common Mistakes in Saw-Tooth Truss Construction
| Common Mistake | Why It Matters | Better Approach |
|---|---|---|
| Poor roof orientation | Daylight may become too harsh, uneven, or ineffective. | Plan roof orientation together with daylight and heat control requirements. |
| Weak drainage planning | Repeated valleys and gutters can collect water if not properly sized. | Coordinate roof slope, gutter capacity, downpipes, and maintenance access. |
| Ignoring wind uplift | Sloped and steep faces can experience different wind pressure zones. | Design roof panels, purlins, bracing, fasteners, and connections for local wind conditions. |
| Treating glazing as an afterthought | Late glazing changes can affect weight, framing, waterproofing, and thermal movement. | Include glazing or translucent panels during structural and envelope design. |
| Poor flashing details | Leaks often occur at roof transitions, vertical faces, and gutter lines. | Detail flashing, sealants, overlaps, and drainage paths before installation. |
| No temporary bracing plan | Trusses can be unstable during erection before the roof system is complete. | Plan temporary bracing and erection sequence before site installation. |
| Adding suspended services later | Lighting, ducts, and pipes can overload members or connections. | Define service loads and permitted fixing points during design. |
When Is a Saw-Tooth Truss a Good Choice?
A saw-tooth truss is a good choice when an industrial building needs repeated roof bays, controlled daylight, possible ventilation, and a strong roof identity. It works best when the project can support careful drainage, waterproofing, and envelope detailing.
It may be suitable for factories, workshops, textile buildings, manufacturing halls, and selected warehouses. It may not be the best option when the lowest-cost simple roof is the main priority, when glazing is not needed, or when maintenance access to gutters and roof joints will be difficult.
The best results come when the truss, purlins, roof panels, glazing, gutters, bracing, fabrication, and installation are coordinated from the beginning.
Conclusion
A saw-tooth truss can be a highly practical roof framing solution for industrial roof construction when it is designed as a complete system. Its repeated profile can support natural daylight, ventilation, efficient roof coverage, and a strong industrial building form.
At the same time, this system requires careful planning. Span, load transfer, wind uplift, drainage, waterproofing, glazing, bracing, fabrication, transport, and installation all influence the final performance. When these details are coordinated properly, a saw-tooth roof can provide both structural value and functional benefits for factories, workshops, and other steel industrial buildings.
FAQ About Saw-Tooth Truss
What is a saw-tooth truss?
A saw-tooth truss is a roof truss system with repeated tooth-like roof profiles. It is commonly used in industrial buildings that need roof framing, daylight openings, ventilation, and repeated roof bays.
Why is saw-tooth truss used in industrial buildings?
It is used because it can support large industrial roof areas while allowing natural daylight, possible ventilation, and efficient repeated steel roof framing.
Is saw-tooth truss suitable for steel buildings?
Yes. It can be suitable for steel factories, workshops, manufacturing plants, textile buildings, and selected warehouses when span, loads, drainage, bracing, and waterproofing are properly designed.
What are the main design concerns for saw-tooth truss roofs?
The main concerns include span, load transfer, wind uplift, roof drainage, glazing support, purlin layout, bracing, waterproofing, fabrication accuracy, and installation sequence.
How is saw-tooth truss different from north light truss?
A saw-tooth truss uses repeated roof profiles that can support daylight openings and ventilation. A north light truss is usually more specifically oriented to bring controlled north-facing light into the building.
What is the biggest construction risk in saw-tooth truss roofs?
Poor drainage and waterproofing are among the biggest risks, especially around repeated gutters, roof valleys, vertical faces, glazing areas, and flashing joints.
