Every steel building depends on a clear understanding of how force moves through its members and connections. A beam, column, frame, or joint may look simple from the outside, but inside the structure, different forces can act in very different ways. Before comparing shear loads and moment loads, it is important to understand that both force effects often appear together in beams, columns, rigid frames, and steel structure connections.
Shear loads vs moment loads is a practical comparison that affects member sizing, connection detailing, fabrication accuracy, and installation safety. Shear loads tend to create sliding or cutting action inside a member, while moment loads create bending and rotation. If these two behaviors are misunderstood, a member may be sized incorrectly, or a connection may fail to transfer force safely through the structural system.
What Are Shear Loads in Steel Structures?
A shear load is a force effect that tends to slide one part of a member relative to another. In simple terms, shear is the action that tries to cut across a member section. In steel design, shear is commonly checked in beam webs, connection plates, welds, bolts, and areas close to supports or concentrated loads.
Shear does not always create visible deformation at first, but it can control the design of short-span beams, heavy support zones, crane brackets, transfer members, and connection details. When the load is concentrated near a support or joint, shear demand can become high even if the bending moment is moderate.
How Shear Acts in Beams
In a typical beam, shear force is often highest near the supports. When the beam receives roof load, floor load, equipment load, or wall load, the support reaction pushes back against the beam. This creates internal shear force that must be resisted by the web and transferred into the supporting member.
For longer beams, bending moment may control the mid-span design, but shear still needs to be checked near beam ends. For shorter beams or beams carrying concentrated loads, shear may become the critical design factor.
How Shear Acts in Connections
Steel connections frequently transfer shear force from one member to another. A simple beam connection, for example, may use bolts, welds, shear plates, clip angles, or web cleats to transfer vertical reaction into a column or girder. In this case, the connection must resist bolt shear, plate bearing, weld shear, and possible tear-out around bolt holes.
A beam may have enough member strength, but if the connection cannot transfer the shear force safely, the load path remains weak. That is why shear connection design is not only about the beam; it is also about the plate, bolt group, weld, supporting member, and fabrication tolerance.
Common Sources of Shear Loads
Shear loads can come from roof loads, floor loads, wall panels, wind reactions, crane systems, mezzanine platforms, equipment supports, and concentrated point loads. In industrial buildings, shear may also appear around bracing connections, machine platforms, transfer beams, and support brackets. Each load source must be traced through the structure until it reaches the foundation.
What Are Moment Loads in Steel Structures?
A moment load is a force effect that causes bending or rotation around a point or axis. When a beam bends under load, one side of the member tends to compress while the opposite side tends to stretch. This bending action creates internal tension and compression forces that must be resisted by the steel section.
Moment loads are especially important in beams, cantilevers, rigid frames, portal frames, crane-support structures, and beam-column joints. In these areas, the design must consider bending strength, rotational stiffness, flange force transfer, and connection rigidity.
How Moment Creates Bending
When a beam carries a vertical load, it bends. The top flange may go into compression while the bottom flange goes into tension, depending on the load and support condition. The web helps connect these flanges and transfer shear, but the bending resistance mainly depends on the overall section shape and depth.
This is why deeper beams often provide better bending resistance than shallow beams of similar weight. In moment-controlled design, section depth, flange size, lateral restraint, and connection stiffness can all influence structural performance.
Where Moment Loads Are Highest
Moment demand depends on the support condition and loading pattern. In a simply supported beam, the highest bending moment often occurs near the mid-span. In a cantilever, the highest moment usually occurs at the fixed support. In a rigid frame, large moments may appear at beam-column joints, knee connections, and haunch zones.
For portal frame buildings, the moment at the knee joint can be one of the most important design checks. This is why portal frames often use haunches, stiffeners, and rigid end-plate connections to help transfer bending forces safely.
Why Moment Loads Affect Frame Design
Moment resistance often requires stronger sections and more detailed connections than simple shear resistance. A moment connection must control rotation and transfer flange forces between members. This may require extended end plates, stiffeners, full-depth welds, larger bolt groups, or column web reinforcement.
When moment loads are high, the frame must be designed as a complete system. The beam, column, joint, bolts, welds, plates, and stiffeners all need to work together to maintain strength and stiffness.
Main Difference Between Shear Loads vs Moment Loads
The main difference between shear loads vs moment loads is how they affect the member. Shear loads try to slide or cut through a section, while moment loads try to bend or rotate the member. Shear is often critical near supports and connection zones, while moment is often critical along spans, at cantilever supports, and inside rigid joints.
In real steel design, these force effects are not completely separate. A loaded beam usually has both shear force and bending moment. A connection may need to transfer vertical shear while also resisting rotation. A portal frame may experience shear, moment, and axial force at the same time. This is why structural design must review the full load path instead of checking only one force type.
Comparison Table: Shear Loads vs Moment Loads
| Design Point | Shear Loads | Moment Loads |
|---|---|---|
| Main behavior | Sliding or cutting action | Bending or rotation |
| Common location | Near supports and connection zones | Mid-span, cantilever supports, or rigid joints |
| Main member effect | Web shear, bolt shear, weld shear | Flange tension and compression, bending stress |
| Key design concern | Shear capacity and load transfer | Bending strength and rotational stiffness |
| Typical connection issue | Bolt shear, plate bearing, or weld failure | End-plate bending, joint rotation, or flange force transfer |
| Common steel structure example | Beam support reaction | Portal frame knee joint |
How Shear and Moment Work Together in Beams
A beam rarely experiences only one force effect. When a beam supports load, internal shear force and bending moment develop together. The shear force diagram shows how vertical force changes along the beam, while the bending moment diagram shows where bending demand is highest.

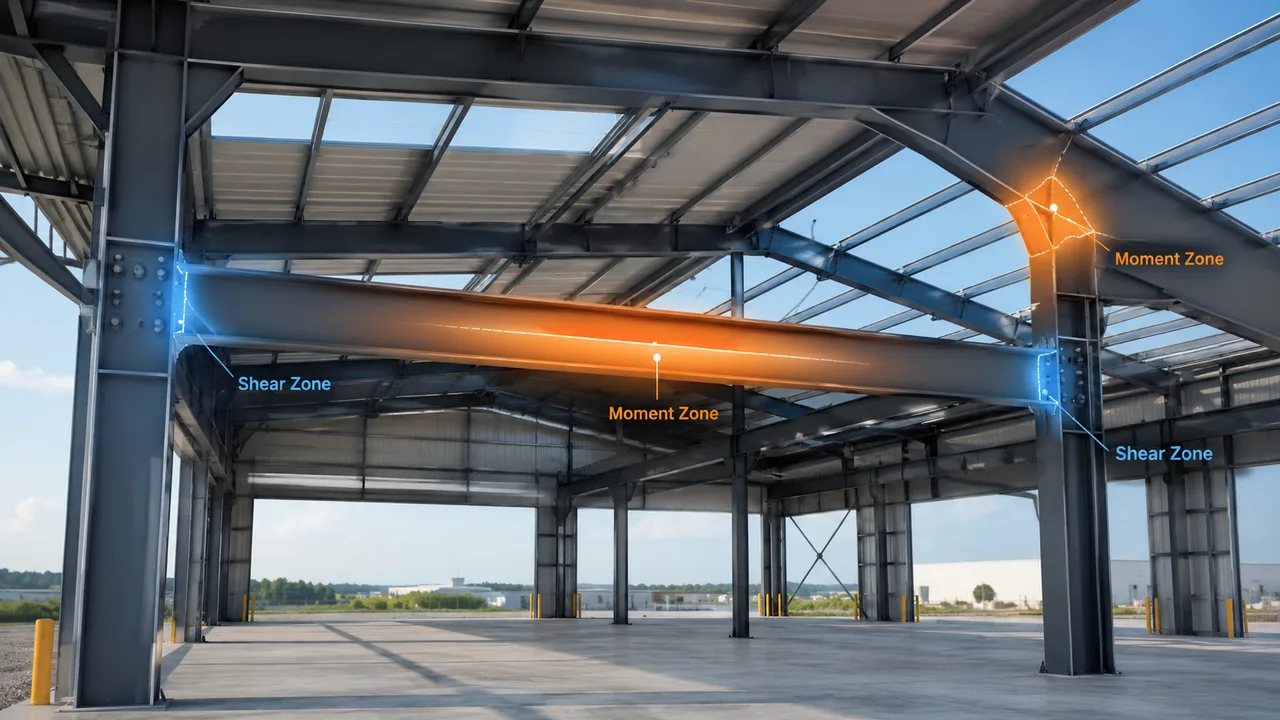

For a simply supported beam with a uniform load, shear is usually high near the supports, while bending moment is highest near the middle of the span. For continuous beams, moment may also become high over intermediate supports. For rigid frames, large moment can appear near beam-column joints while shear is still transferred through the web and connection plates.
This interaction is important because a member that passes a bending check may still need shear reinforcement, web stiffeners, or a better connection detail. At the same time, a beam designed only for shear may be unsafe if bending moment is ignored.
Shear Loads in Steel Structure Connections
Shear connections are common in steel buildings because many beams are designed to transfer vertical reactions without resisting significant rotation. These connections may use shear tabs, single plates, double angles, fin plates, end plates, web cleats, bolts, or welds. The goal is to move the shear force from the beam into the supporting member safely and efficiently.
In bolted shear connections, the bolt group must resist shear force while the connected plates must resist bearing, tear-out, and block shear. In welded shear connections, weld size, weld length, and base metal strength must be checked. If the connected web is thin or the load is concentrated, local reinforcement may be needed.
Connection geometry also matters. Edge distance, bolt spacing, plate thickness, hole tolerance, and alignment can all affect performance. A properly detailed shear connection keeps the load path clear and reduces installation problems during erection.
Moment Loads in Rigid Frames and Beam-Column Joints
Moment-resisting connections are more demanding because they must transfer bending and control rotation. In a rigid beam-column joint, the connection does not simply pass vertical reaction into the column. It also transfers tension and compression forces from the beam flanges, while the web and joint area help transfer shear.
Portal frame knee joints are a common example. These joints often use haunches to increase bending resistance near the connection. End plates, high-strength bolts, welds, stiffeners, and column web reinforcement may also be required. If the joint is not stiff enough, excessive rotation can reduce frame performance and increase deflection.
Moment connection design must match the intended frame behavior. Treating a moment connection like a simple shear connection can lead to unsafe rotation, overstressed bolts, local plate bending, or poor load transfer between the beam and column.
How Loads Affect Member Selection
Member selection depends on which force effect controls the design. In some members, shear capacity is the main concern. In others, bending moment controls section depth, flange size, or lateral restraint. In many real projects, both must be checked together with axial force, deflection, buckling, and connection capacity.
When Shear Controls Design
Shear may control design in short-span beams, heavily loaded support zones, crane brackets, deep webs, transfer members, and beams with concentrated loads near supports. In these cases, engineers may need thicker webs, web stiffeners, stronger connection plates, or larger bolt groups.
When Moment Controls Design
Moment often controls design in long-span beams, cantilevers, portal frames, rigid beam-column joints, large roof spans, and members with high bending demand. In these cases, engineers may select deeper sections, larger flanges, lateral bracing, haunches, or moment-resisting connections.
When Both Must Be Checked
Most steel projects require both shear and moment checks. A roof beam, crane beam, mezzanine beam, or frame rafter may need to resist shear near supports while also resisting bending along the span. Good design compares all relevant force effects and confirms that the member and connection can work together.
Common Mistakes When Comparing Shear and Moment
One common mistake is thinking that shear and moment can be treated as completely separate issues. In real buildings, the same member can experience both at the same time. Checking only one force effect may hide the real design demand.
Another mistake is designing the member but ignoring how the connection transfers force. A beam may have enough shear and bending capacity, but the end connection may not have enough bolts, weld length, plate thickness, or stiffness. This is especially risky when the connection is expected to transfer moment but is detailed like a simple shear connection.
Designers may also underestimate end moments in rigid frames. A portal frame rafter may appear to carry roof load like a beam, but the knee joint must transfer large bending forces into the column. Without proper haunches, stiffeners, or end-plate design, the frame may not perform as intended.
Why Connection Details Matter for Both Load Types

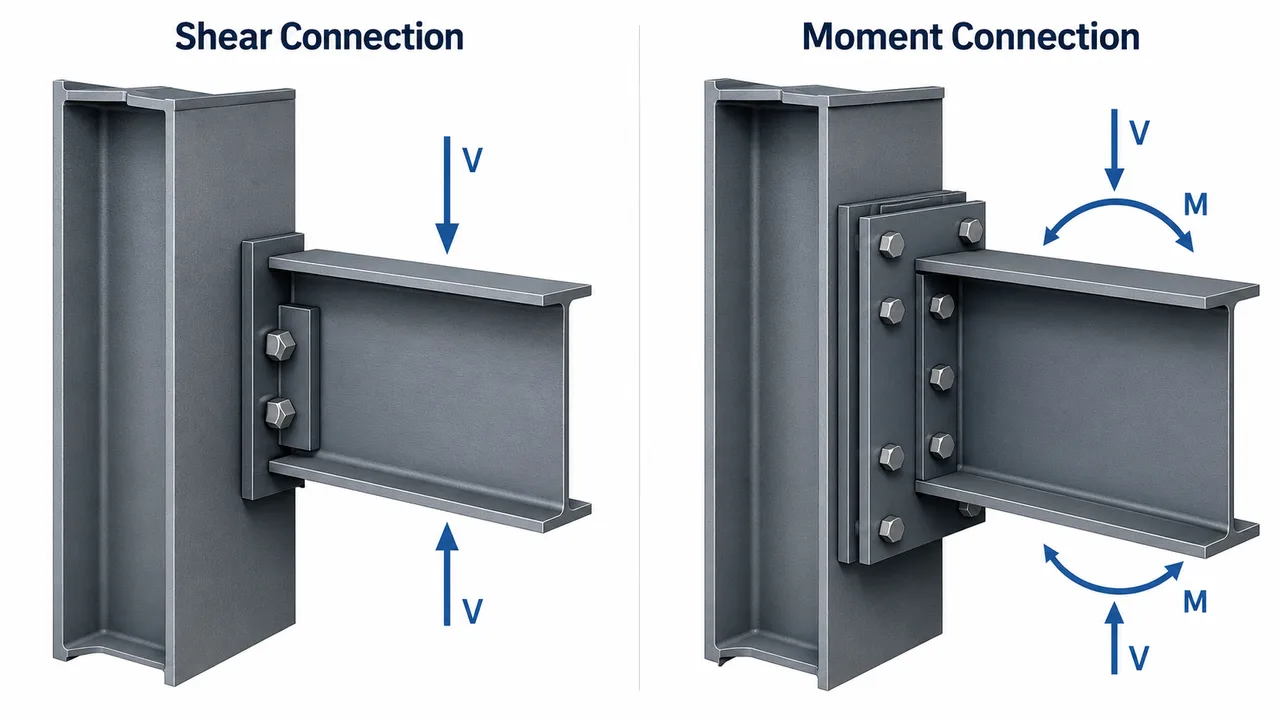

Shear and moment both depend on proper connection detailing, but the required details are different. A shear connection focuses on transferring vertical or horizontal reaction through bolts, welds, plates, and bearing surfaces. The design must check bolt shear, weld shear, edge distance, hole spacing, plate thickness, and possible tear-out.
A moment connection must do more than transfer reaction. It must also resist rotation and transfer flange tension and compression across the joint. This may require end-plate bending checks, stiffener plates, column web reinforcement, larger bolt groups, and careful weld detailing.
In a complete steel structure, both types of connection must support the intended load path. If the member is strong but the connection is weak, the structural system remains vulnerable. Clear shop drawings, accurate fabrication, and controlled installation are essential for both shear and moment performance.
How XTD Steel Structure Supports Steel Structure Load Design
For warehouses, factories, workshops, industrial buildings, and long-span roof systems, load behavior must be considered from early structural planning through fabrication and installation. XTD Steel Structure supports steel structure projects through member sizing coordination, connection detailing, workshop fabrication, quality inspection, and site installation support.
This integrated process helps ensure that beams, columns, bracing members, rafters, plates, bolts, and welds are not treated as isolated parts. Instead, they are coordinated as one complete structural system, so shear loads, moment loads, axial forces, and connection requirements can work together safely.
Practical Takeaway for Steel Structure Projects
Shear loads vs moment loads is not only a theoretical comparison. It directly affects section selection, connection type, plate thickness, bolt arrangement, weld detail, stiffener design, and erection planning. Shear controls sliding and cutting behavior, while moment controls bending and rotation behavior.
For project owners, contractors, and engineers, the key is to understand where each force effect is likely to become critical. Shear often becomes important near supports and connections. Moment often becomes important along spans and at rigid joints. In real steel buildings, both force effects must be checked together with the full load path.
A safe design requires strong members and properly detailed connections. When shear force and moment demand are coordinated correctly, the final steel structure can achieve better stability, safer load transfer, and more reliable long-term performance.
FAQ About Shear Loads vs Moment Loads
What Is the Main Difference Between Shear Loads and Moment Loads?
Shear loads create sliding or cutting action across a member section, while moment loads create bending or rotation in a structural member. Both force effects can appear together in beams, frames, and connections.
Where Are Shear Loads Usually Highest?
Shear loads are often highest near supports, beam ends, concentrated load points, and connection zones. These areas must be checked carefully for web shear, bolt shear, weld shear, and plate bearing.
Where Are Moment Loads Usually Highest?
Moment loads are often highest at beam mid-spans, cantilever supports, rigid frame knees, and beam-column joints. The exact location depends on the support condition and loading pattern.
Can Shear Loads and Moment Loads Act Together?
Yes. In most steel beams, frames, and connections, shear and moment act together. A complete design must check both effects along with axial force, deflection, buckling, and connection capacity.
